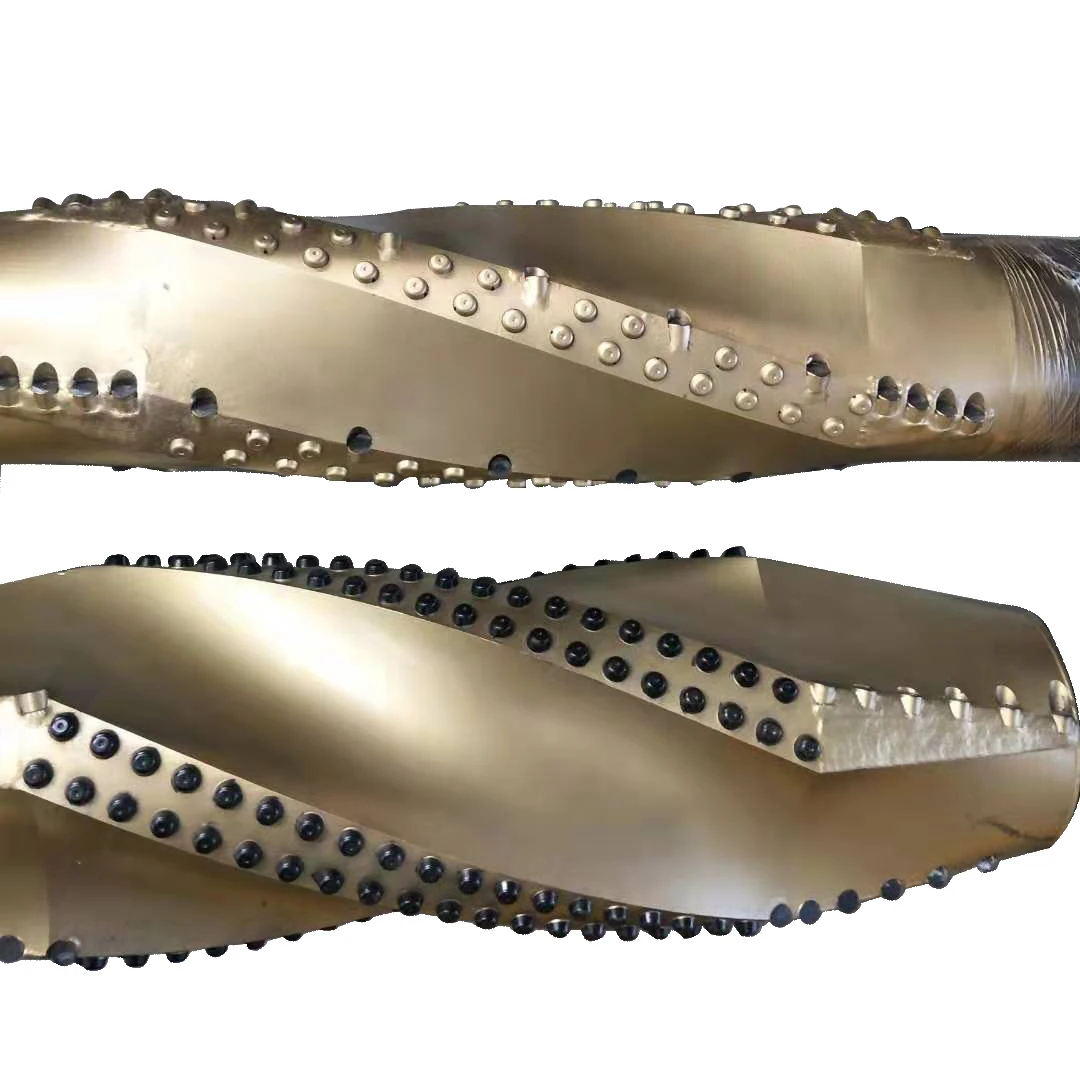

Conical Screw Adjust Diameter Range Taper Pdc Reamer

  • >=1 Pieces
    $19,000.00
Model Number:
DNR11
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 5 Pieces)
Customized packaging (Min. Order: 5 Pieces)

More

Graphic customization (Min. Order: 5 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
GREAT
Material:
Carbon Steel
Certification:
API
Type:
Drill Bit
Machine Type:
Drilling Tool
Processing Type:
Casting
Use:
Well Drilling
Applicable Industries:
Energy & Mining
Product name:
PDC reamer
Size:
12 1/4"
adaped well:
12 1/4"
Length:
104.33
Usage:
Hole Drilling
Application:
Oilwell drilling
Advantage:
High Performance
Certificate:
API
Thread:
API 6 5/8" PIN
Blade No.:
4
Supply Ability
Supply Ability:
5000 Piece/Pieces per Year PDC reamer
Packaging & Delivery
Packaging Details
wooden box
Port
Beijing/Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description




The size parameter feature
 lnchMetric
Adapted Well12 1/4311.15
Nominal diameter(D)12 1/8307.98
lnner diameter2.8071
Fishing Neck OD(Dn)7.99203
Total Length(L)104.332400
up neck length(Lt)35.56

776.21

DOWN Neck Length(Ld)30.44626.21
Blades4



Connection
 TOPDOWN
In BHA6-5/8 reg box6-5/8 reg pin
Near bit6-5/8 reg box4-1/2 reg box



OPeration Parameter
Max. WOB50T110231lb
Max. Pull up force200T440925lb
Make up Torque38~43.4KN.m27.94~311.91ft-lb





PDC_12



  • Excellent equipment, military quality
  • Adopt Japan Mazak, Germany DMG high - precision processing and testing  procedures to create perfect product quality.
  • The world's top suppliers for product quality protection escort
  • 20 Top designers & 100 senior technicians & 50 sales and service team  to create a perfect customer experience

1 (2).jpg

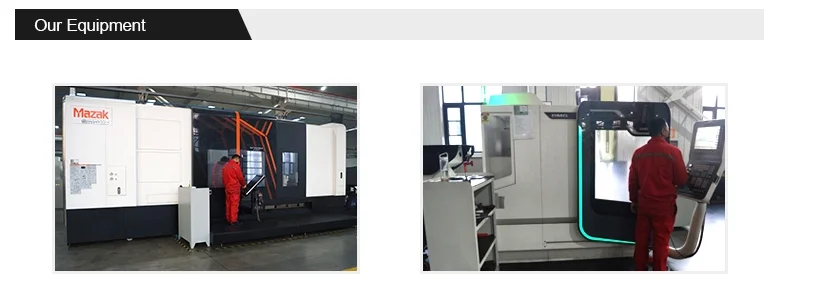

Main parameters of CNCMain parameters of DMG
Swing Diameter:800mmSwing Diameter:500mm
Effective Length:3000mmEffective Length:530mm
Processing  Precision:2μmProcessing  Precision:1.8μm




Production cycle: 5-30 days(PDC), 10-60 days(roller cone bit)

Major market: North America,Middle east area,Africa,Europe

Package: Iron or Wooden box         Annual output: 10000 pcs



1. Are you trading company or manufacturer ?

 We are manufacturer.



2. Whether accept customized according to customers' requirements ?

Yes, We accept customized, no matter what size and type ,and MOQ is 1 piece .



3. About lead time and shipping time?

The lead time depend on quantity of order. Usually it will takes 3-5days shipping to Tianjin Port or Beijing Airport,China .Even the small order or urgent order we can send you by air after received your agreement. According the distance from china to your port, usually from China to European about 25-30 days. To West of American 20-25 days.



4. It is produced according to the standard?

Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request,we had strictly inspection in the production.  Exported to the Middle East, Europe, North America, South America, Australia and other countries and regions.



5. Can I expect a quality product?

Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.



6. How do you guarantee your quality?

We select the advanced production technology and equipment, strictly control the whole production process,and we inspected the finished drill bits,we can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.
